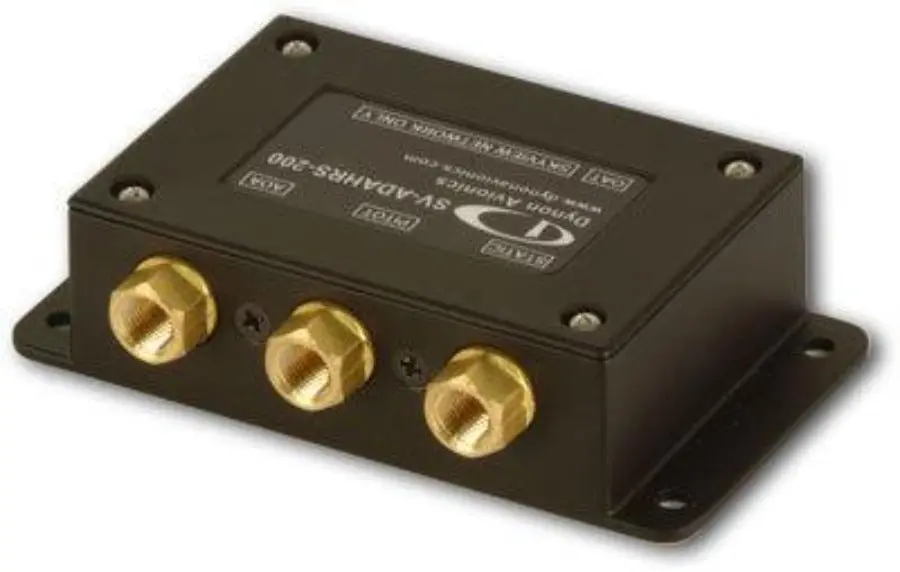

SV-ADAHRS-200 Integrated Attitude and Heading Reference System with Outside Air Temperature Sensor

Description

Provides primary flight instruments, including attitude, airspeed, altitude, magnetic heading, DG, VSI, AOA, G-meter, turn rate, slip/skid ball, OAT, and TAS. Add a secondary ADAHRS for redundancy and SkyView and AFS EFIS systems automatically cross-check your instruments for you. The SV-OAT-340 Outside Air Temperature Sensor is included with each SV-ADAHRS-200/201.  Redundancy: You may have one, two, or more ADAHRS in your SkyView System. If one fails, the backup ADHARS will provide data to the SkyView Display(s). To maintain complete redundancy, a separate SV-OAT-340 Sensor should be connected to each ADAHRS. Note that functionally, the SV-ADAHRS-200 and the SV-ADAHRS-201 are the same. The only difference is that the SV-ADAHRS-201 requires an SV-ADAHRS-200 in the same system in order to be activated. In the event that the SV-ADAHRS-200 is removed from the system, the SV-ADAHRS-201 will remain activated for an additional 30 flight hours before it becomes deactivated
