Description

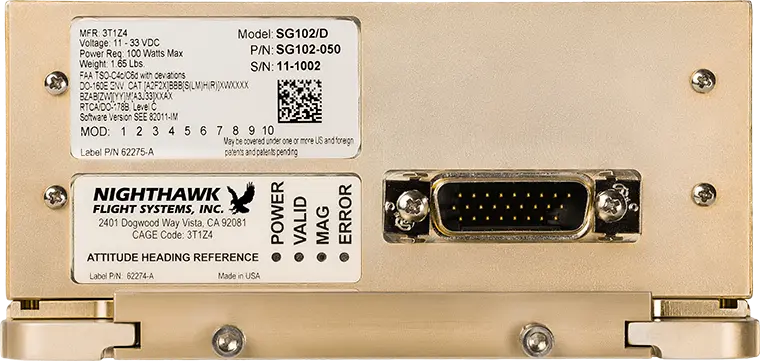

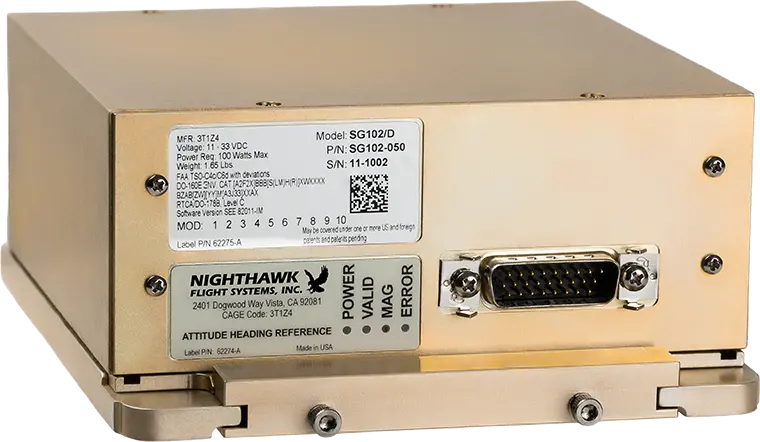

D, for Digital. The SG102/D Attitude Heading Reference System (AHRS) is identical to the SG102 (MOD2) without the analog interfaces. It’s lighter in weight and lighter in price. The SG102/D is designed for non-KG102 equipped aircraft and ideal for new equipment installs.
With an improved initialization time of one minute, it’s 3X faster than the original SG102. It also comes with a selectable low- and high-speed ARINC 429 output, which allows for additional interface options such as radar systems, satellite communication antennas and FLIR stabilization.
The SG102/D is available in three versions depending on the application
- SG102/D-050: Fixed-Wing Piston Aircraft
- SG102/D-150: Fixed-Wing Turbine Aircraft
- SG102/D-250: High-Vibration Version for Helicopters
Included:
- 902XX-A SG102-X50
- 82011-PG Pilots Guide
- 90171-K01 Installation Kit

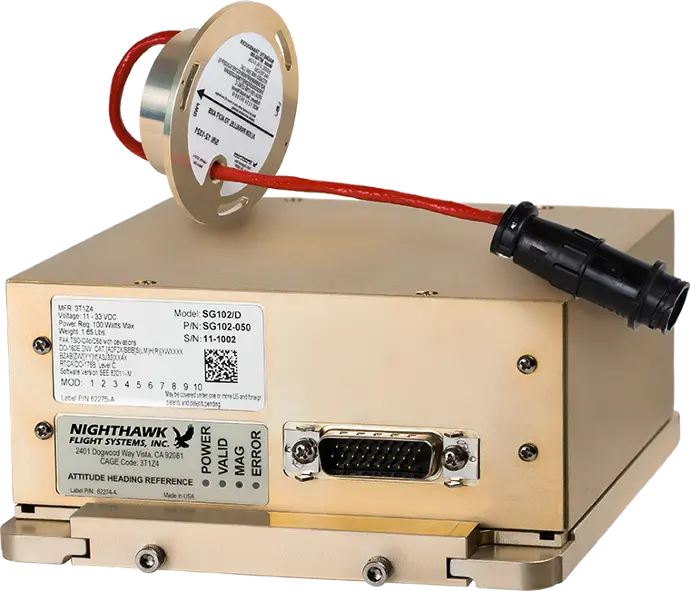

- 82012-B MT102-300 Magnetic Transducer
Not Included:
- 90230-A SG102 Maintenance Adapter
- 88128-A1 MT102 Calibration Extension Cable
Notes: The SG102/D AHRS is not compatible with a float plane
