Precision Instrument Plotter for Technical Diagrams and Engineering Drawings

Description

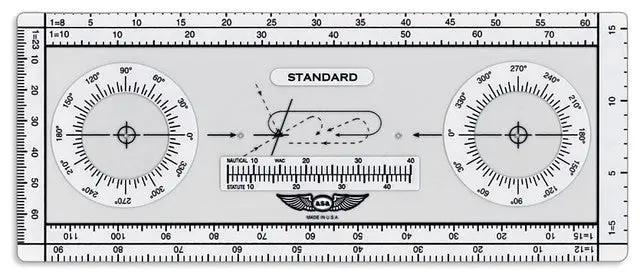

ASA’s instrument plotter includes all current IFR chart scales, and features:

• 12 scales to accommodate both NACO and Jeppesen instrument charts (see below)
• Conversion scale for nautical and statute miles
• Holding patterns depicted for both standard and nonstandard entries
• Compass roses allow quick course and bearing information
• Professional layout enabling easy reading during enroute spot checks
• Made of durable resin so plotter won’t warp or break in extreme temperatures

Scales included on Standard side:
1=5
1=8
1=10
1=12
1=15
1=23
NM to SM

Scales included on Nonstandard side:
1=7
1=7.5
1=14
1=16
1=20
1=31
NM to SM
