Description

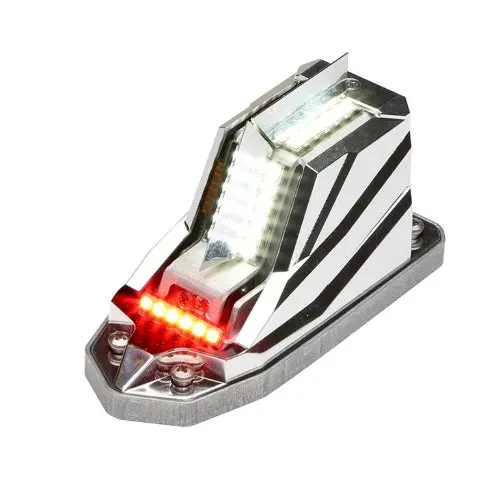

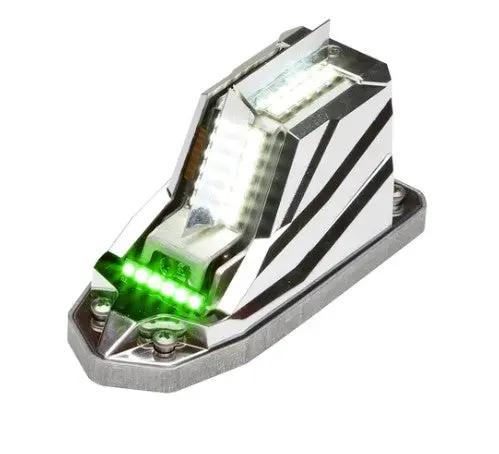

Whelen Orion 650E Position Light
The Orion 650E series products incorporate RED or GREEN forward Position Lights as well as the WHITE flashing Anti-Collision light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation.
Whelen LED Wingtip Lights

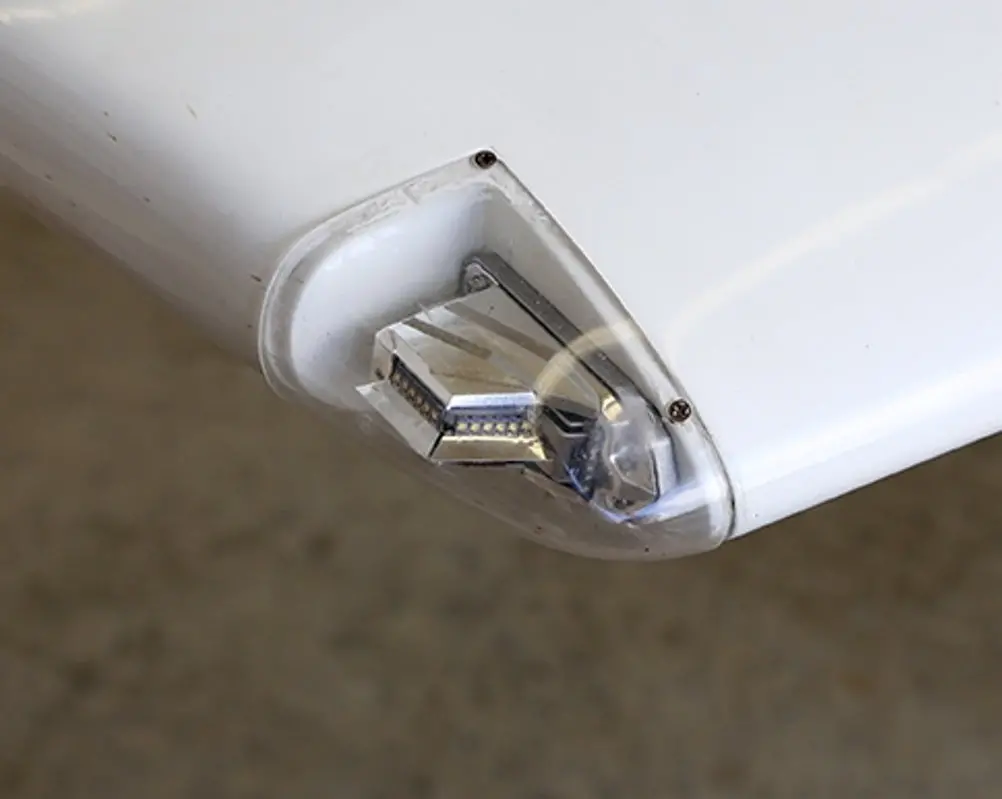

Designed to be flush mounted behind a lens, the footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved.
Airplane Wing Tip Light Information
- Drawing 90701
- Weight .27 lbs.
- Current Draw 14V / 28V 0.30 / 0.15 Amp (Position) 0.70 / 0.35 Amp (Anti-Collision)
Plane Wing Lights Certifications
OR6501GE – 01-0790701-01 – Embedded Green Position Light/ Anti- Collision Light Wingtip Assembly, 14 VDC
FAA TSO-C96a, TSO-C30c Types II
OR6501RE – 01-0790701-02 – Embedded Red Position Light/ Anti- Collision Light Wingtip Assembly, 14 VDC
FAA TSO-C96a, TSO-C30c Types II
OR6502GE – 01-0790701-11- Embedded Green Position Light/ Anti- Collision Light Wingtip Assembly, 28 VDC
FAA TSO-C96a, TSO-C30c Types II
OR6502RE- 01-0790701-12 – Embedded Red Position Light/ Anti- Collision Light Wingtip Assembly, 28 VDC
FAA TSO-C96a, TSO-C30c Types II
** ANY OF THE ORION™ 650E PRODUCTS ARE TO BE MOUNTED BEHIND A LENS NOT TO BE MOUNTED EXTERNALLY ON AIRCRAFT. **
