Description
Freight Alert (*FA*): Oversized or overweight items have extra shipping charges. You will be informed of additional charges prior to shipping.

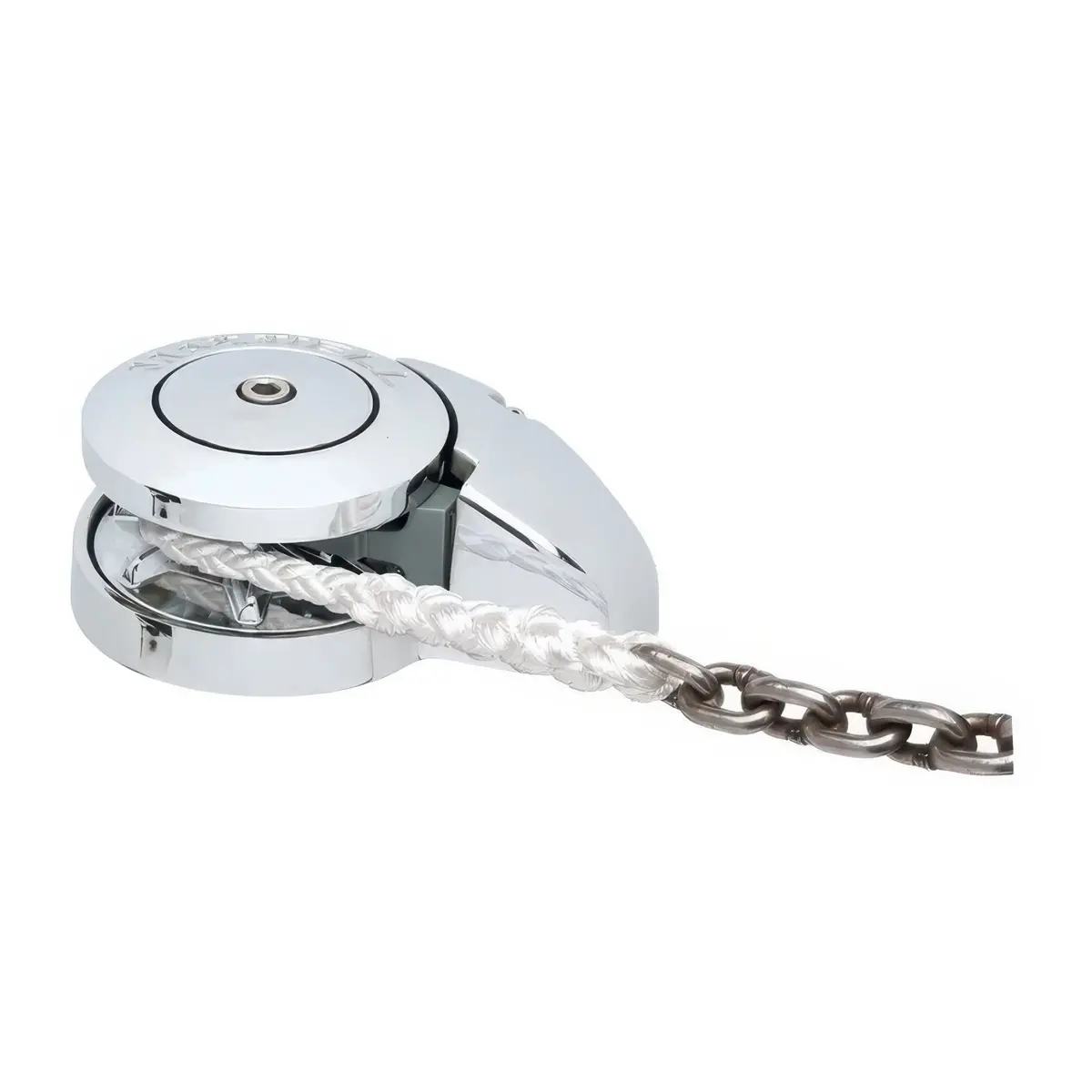

A compact vertical windlass designed for 1/4 inch chain and 1/2 inch 8 plait nylon rope, ideal for boats from 15 to 25 feet. This low profile unit features a patented wave design chainwheel for smooth operation and a vertical gearbox and motor for quick, easy installation. Built for durability and long term use, it delivers reliable performance in a compact form suited to smaller trailer boats.
- Power: 500W
- Type: Vertical rope and chain windlass
- Boat size: 15 to 25 inches
- Chain compatibility: 6mm (1/4″”)
- Rope compatibility: 12mm (1/2″”) 8 plait nylon rope
- Design: Patented wave design chainwheel
- Profile: Low profile, no capstan drum
| Model | RC6 |
| Maximum Pull/Lift | 350 kg (770 lbs) |
| Static Hold | 700 kg (1540 lbs) |
| Chain Short Link | 6 mm / 7 mm (1/4”) |
| Rope Size (Nylon) (8 plait recommended) | 12 mm (1/2”) |
| Chain Speed (Anchor Retrieval) | 24 m/min (79 ft/min) |
| Rope Speed (Anchor Retrieval) | 21 m/min (69 ft/min) |
| Power Supply (DC) | 12V, 24V |
| Motor Power (Watt) | 500 |
| Net Weight | 8.5 kg (18.7 lbs) |
