Description

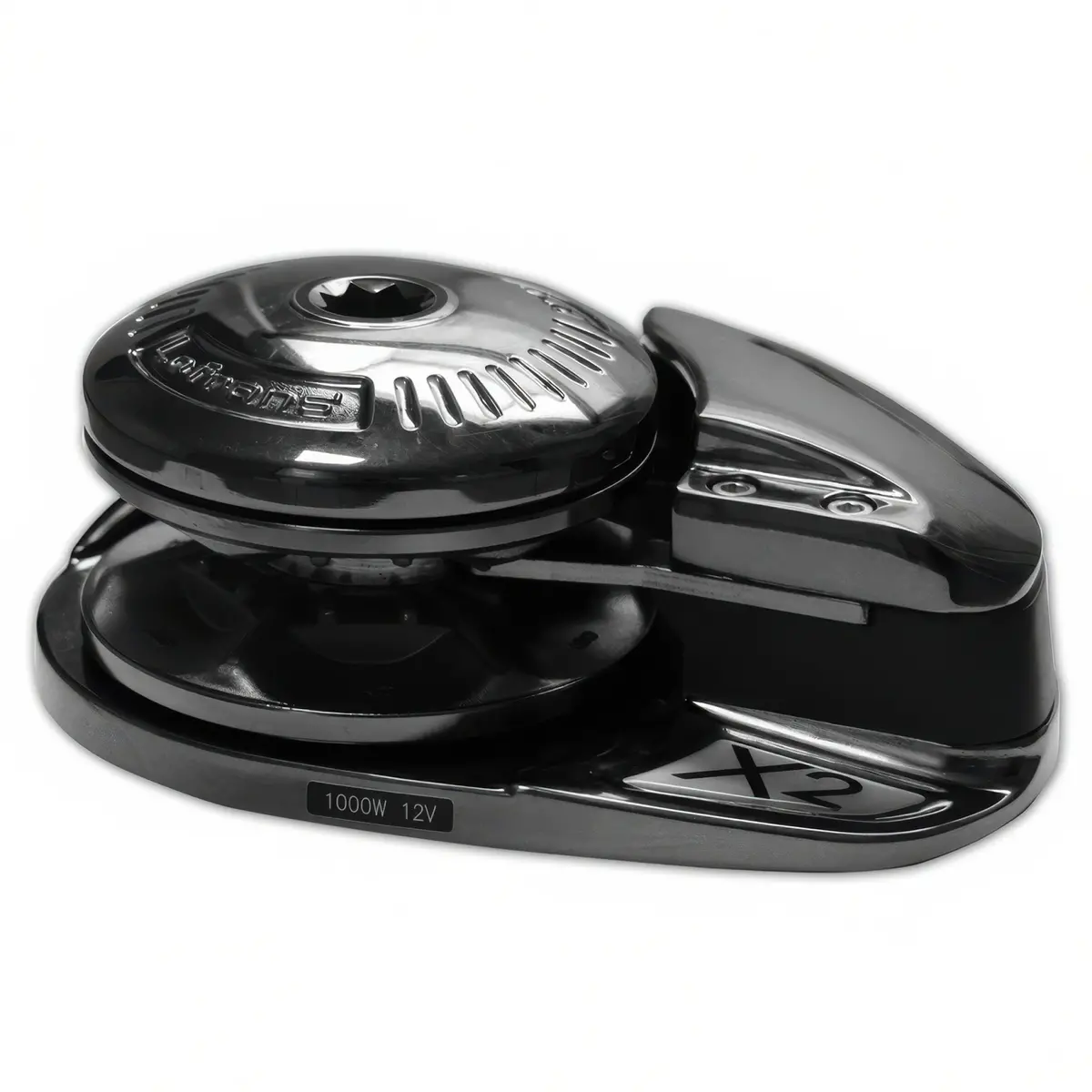

The Lofrans Project X2 Windlass Capstan 1000W 5/16”HT is a powerful and versatile anchoring solution, offering a choice of drum or low-profile design. It features a watertight stainless steel ball bearing base, independent gypsy and drum operation, and a rope and chain combination gypsy for reliable performance. Smooth rope and chain management is ensured by a spring-loaded arm, with a manual chain release and override for added convenience.
Built for durability, it includes an IP67-rated motor cover and a marine-grade anodized aluminum gearbox. Standard equipment includes a dual-direction solenoid pack, gypsy for chain and rope, handle, and a QR code for the instruction manual.
| Construction | DARK Chromed Bronze |
| Motor Size | 1000 W |
| Chain size | 5/16″ HT |
| Low profile or Drum | drum/capstan |
| Power Supply (V) | 12V |
| Maximum Pull (kg) | 1000 |
| Working Load (kg) | 150 |
| Amps at Working Load (A) | 117 |
| Line Speed at Working Load (m/min) | 20 |
| Max Line Speed (m/min) | 40 |
| Net Weight Low Profile (kg) | |
| Net weight with Drum (kg) | 20 |
