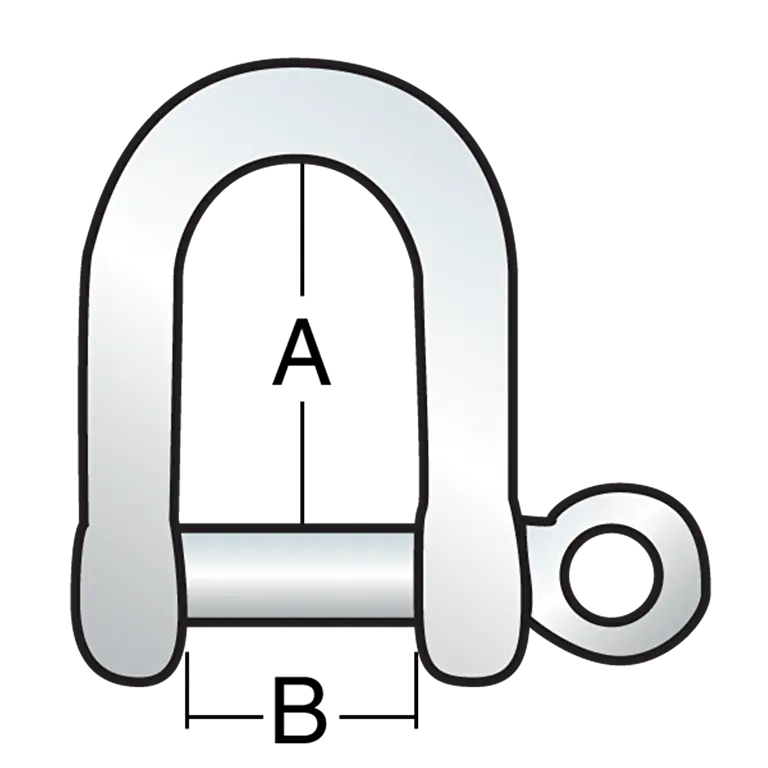

Harken D-Style Long Shackles

Description

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
“D” Dee shackles are the most common type of shackle. They are best suited for aligned attachment points.

SPECIFICATIONS

5mm Long D Specs:
Shackle pin Ø (mm)5 mm
Weight (g)22g
A (mm)38 mm
B (mm)10 mm
Maximum working load (kg)540kg
Breaking load (kg)1080kg

6mm Long D Specs:
Shackle pin Ø (mm) 6mm
Weight (g)38g
A (mm)44mm
B (mm)13mm
Maximum working load (kg)750 kg
Breaking load (kg)1500 kg

8mm Specs :Shackle pin Ø (mm)8 mmWeight (g)86 gA (mm)57 mmB (mm)16 mmMaximum working load (kg)1380 kgBreaking load (kg)2760 kg
