Description
The Harken Stainless Bow Shackle – 5mm is crafted from polished, forged stainless steel and is marked with the screw pin diameter. Bow shackles excel in handling multidirectional loads, offering ample articulation, especially when connected to a round bail.
| Weight (g) | 18 g |
| Weight (oz) | 0.64 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (lb) | 2380 lb |
| Breaking load (kg) | 1080 kg |

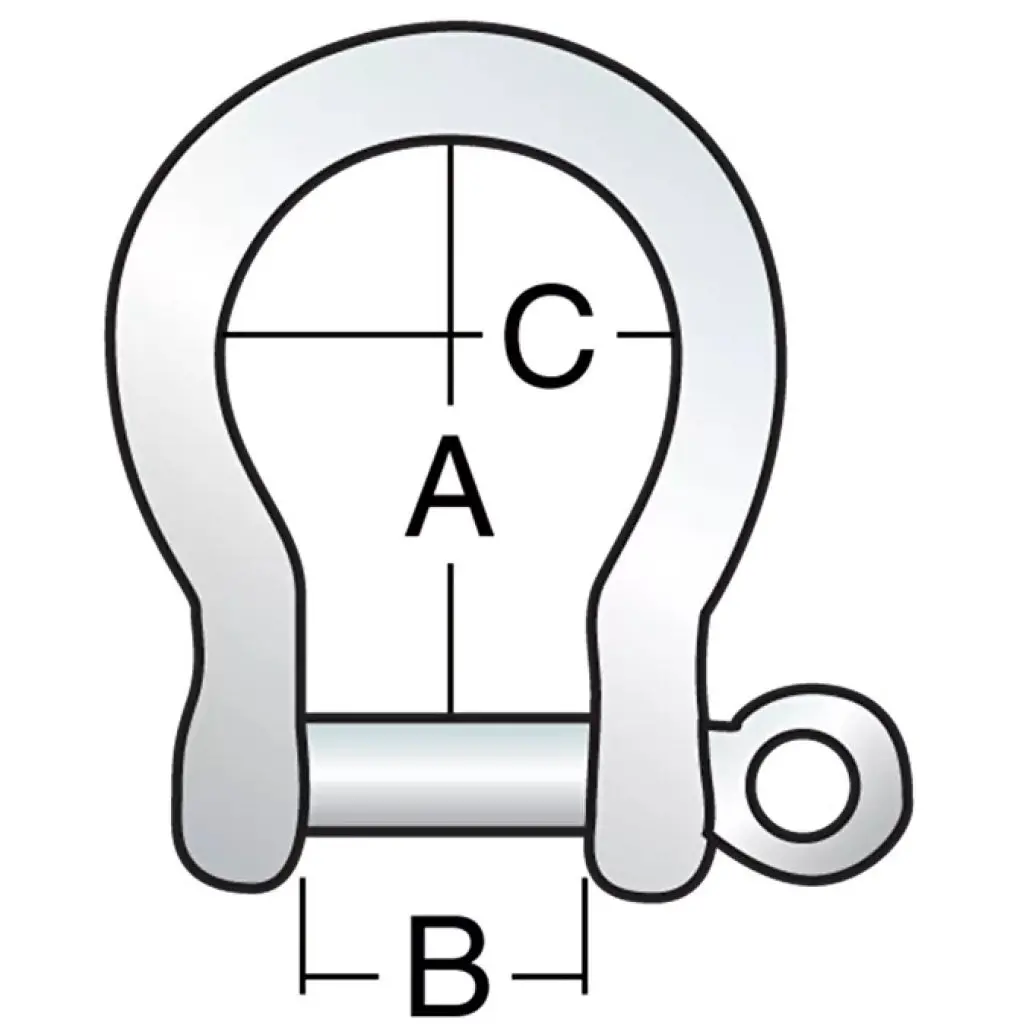

| A (mm) | 25 mm |
| A (in) | 1 in |
| B (mm) | 10 mm |
| B (in) | 3/8 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
| C (mm) | 17 mm |
| C (in) | 11/16 in |
