Description

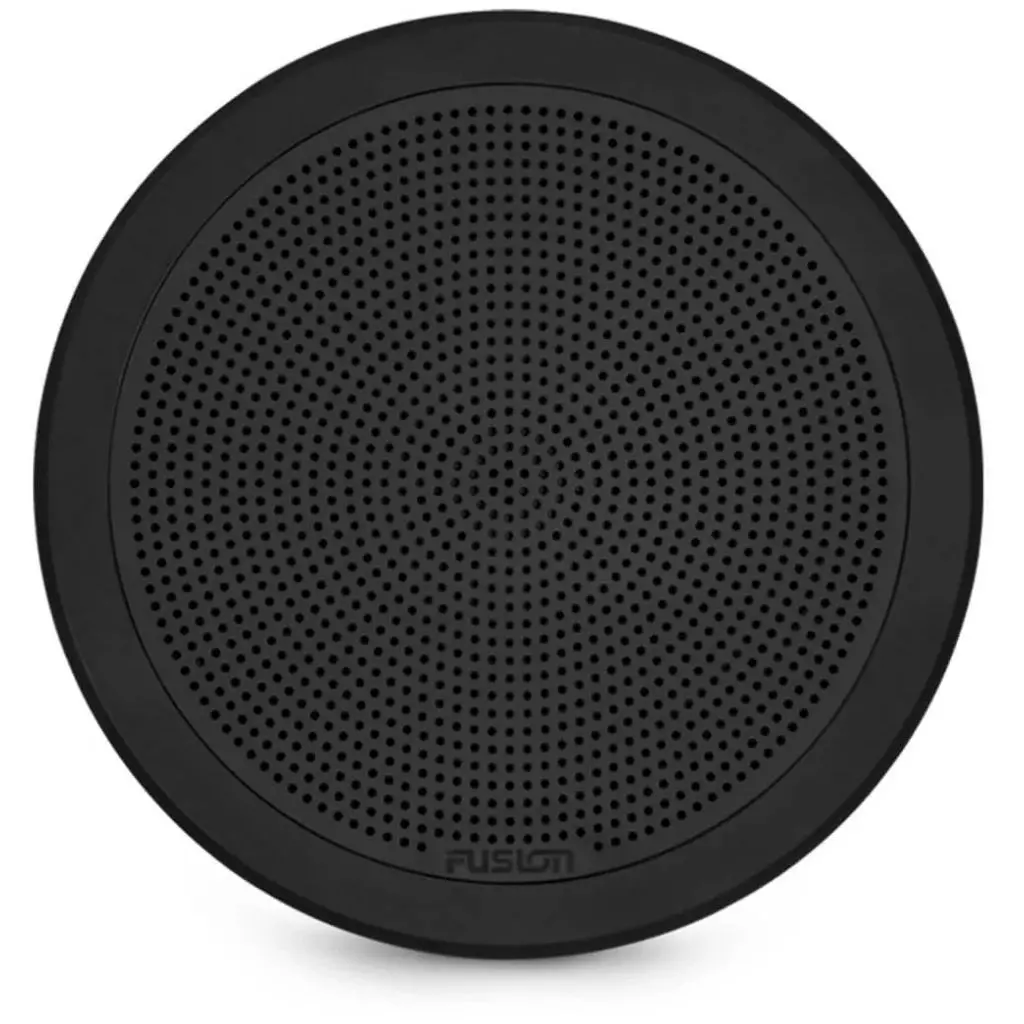

Upgrade your boat’s audio system with Fusion’s FM Series speakers, featuring innovative flush-mount design for a sleek and minimalistic finish. Enjoy a smooth upper frequency response and increased efficiency with the aluminum dome tweeter. The low profile and near-flat installation make for easy mounting.
With an increase in real power, the voice coil provides a high-quality audio experience. The speakers are engineered to last season after season and include a 3-year warranty for added peace of mind.
General |
|
| Physical dimensions | 7.7″ Round (Diameter x Depth): 7.13″ x 3.26″ (181 x 82.9 mm) 7.7″ Square (WxHxD): 7.13″ x 7.13″ x 3.26″ (181 x 181 x 82.9 mm) 6.5″ Round (Diameter x Depth): 6.02″ x 2.74″ (153 x 69.6 mm) 6.5″ Square (WxHxD): 6.02″ x 6.02″ x 2.74″ (153 x 153 x 69.6 mm) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | 7.7″: FM-F77RW/FM-F77RB/FM-F77SW/FM-F77SB 6.5″: FM-F65RW/FM-F65RB/FM-F65SW/FM-F65SB |
| Peak power (Watts) | 7.7″: 200 W 6.5″: 120 W |
| RMS power (Watts) | 7.7″: 50 W 6.5″: 30 W |
| Sensitivity (1 W / 1 m) | 7.7″: 91 dB 6.5″: 87 dB |
| Frequency response | 7.7″: 80 Hz – 18 kHz 6.5″: 100 Hz – 18 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 7.7″: 20 – 150 W/Ch 6.5″: 15 – 80 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 7.7″: 1.18″ 6.5″: 1″ |
| Cone material | 7.7″: Polypropylene cone with cloth surround 6.5″: Polypropylene cone with rubber surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 7.7″: 114.2″ (290 cm) 6.5″: 96.5″ (245 cm) |
| Warranty | 3 years |
Mounting dimensions |
|
| Mounting diameter clearance | 7.7″ Round: 6.50″ (165 mm) 7.7″ Square: 6.50″ x 6.50″ (165 x 165 mm) 6.5″ Round: 5.43″ (138 mm) 6.5″ Square: 5.43″ x 5.43″ (138 x 138 mm) |
| Mounting depth clearance | 7.7″: 3.27″ (83 mm) 6.5″: 2.76″ (70 mm) |
Optimum enclosure recommendations |
|
| Size | 7.7″: 0.28 cubic ft (8 L) 6.5″: 0.14 cubic ft (4 L) |
