Fortress Aluminium Anchor – High-Performance Marine Anchoring Solution

Description

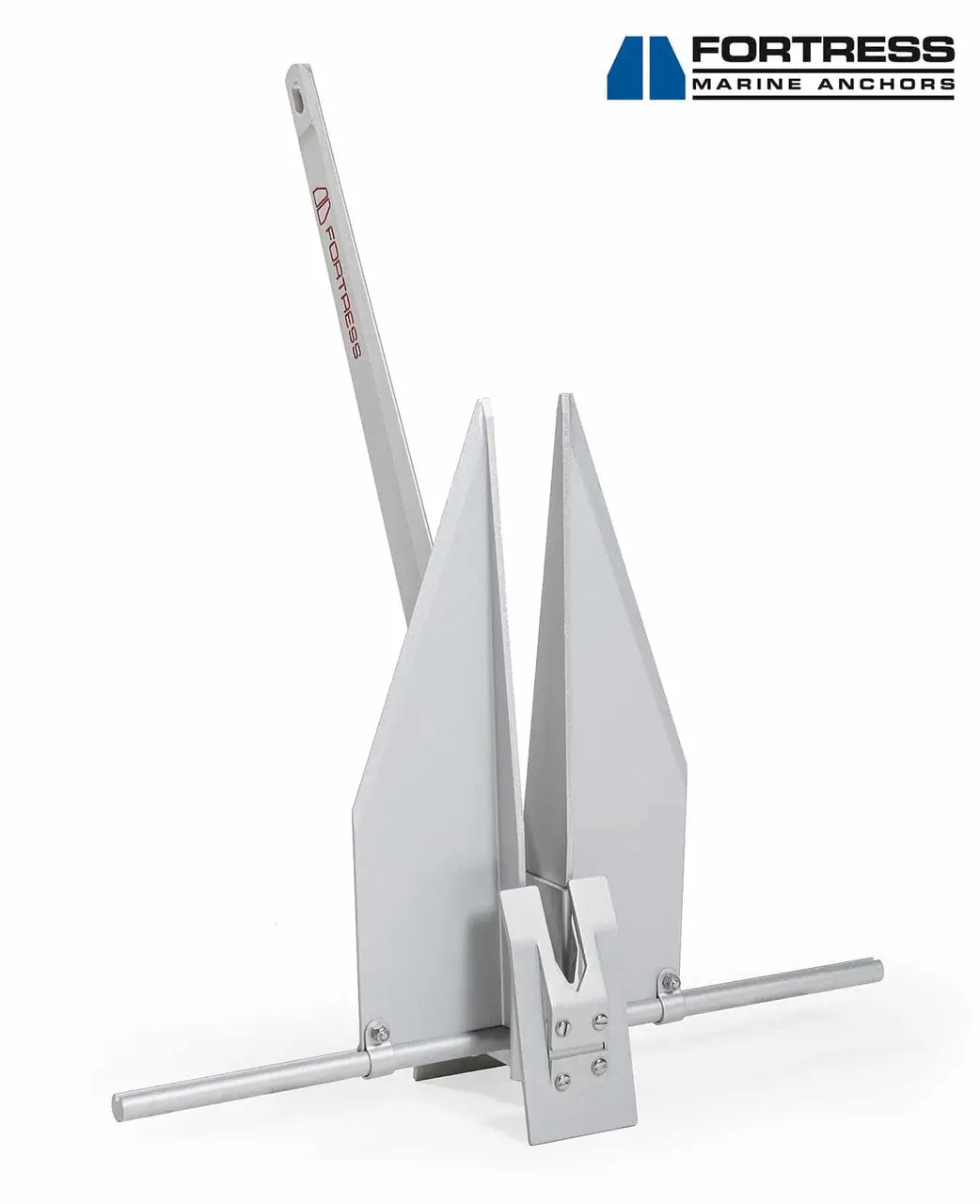

FORTRESS ALUMINIUM ANCHORS

SUPERIOR PERFORMANCE
For over three decades, the much lighter Fortress® has out-performed substantially heavier steel anchors
in holding power tests conducted around the world.

In the US Navy tests, not only did the Fortress® anchors out-perform heavier steel anchors, they were also
able to withstand pull loads that averaged over 200x their own weight … and without incurring serious
damage, which was noted in the test report summary:
“The fact that Fortress® anchors incurred no significant structural damage at such high holding ratios suggests that the anchors have been extensively engineered from both the hydrodynamic and structural
standpoints.”

SUPERIOR DESIGN
Fortress® anchors are constructed using a high-tensile, corrosion-resistant, aluminum magnesium alloy that is precision- machined into
interlocking components with no welds to weaken the metal. This results in a lighter, easy to handle anchor with superior holding power.
They are precision-machined for sharpness and quick penetration into common sea bottoms, which insures faster setting performance.

SUPERIOR WARRANTY
Fortress® anchors offer a Lifetime Parts Replacement Warranty. In the unlikely event of damaging an anchor part, Fortress® will replace the
damaged part for free, customers only pay for shipping and handling.

THE ONLY ANCHOR WITH THESE EXCLUSIVE FEATURES:

• Highest rating in over 20 independent tests worldwide

• Superior holding power at a fraction of the weight

• Easily assembles and disassembles for convenient storage

• Adjustable fluke angles for outstanding holding power: 32° for common bottoms, 45° for soft mud

• Models FX-37, FX-55, FX-85, and FX-125 certified by Det Norske Veritas (DNV) as “Super High Holding Power” anchors

• High-tech, rustproof aluminium alloy

• Lifetime Parts Replacement Warranty

• 90-day money back guarantee

• Tough anodized finish

• Type Approved by American Bureau of Shipping (ABS)

• Used by the U.S. Navy and U.S Coast Guard

 Fortress Anchor Guide

Boat Length	ft	16′-27′	28′-32′	33′-38′	39′-45′	46′-51′	52′-58′	59′-68′	69′-150′
	m	5-8m	8-10m	10-12m	12-14m	14-15m	16-18m	18-21m	21-46m
Fortress Model		FX-7	FX-11	FX-16	FX-23	FX37	FX-55	FX-85	FX-125
Weight	kg	1.8kg	3.2kg	4.5kg	6.8kg	9.5kg	14.4kg	21kg	31kg
Holding Power
Working Load	kg	318	408	567	907	1,361	1,814	2,381	3,062
32° Hard Sanding Holding	kg	1,270	1,633	2,268	3,629	5,443	7,258	9,526	12,247
45° Soft Mud Holding	kg	381	490	680	1,089	1,633	2,177	2,858	3,674
32° Soft Mud Holding	kg	191	245	340	544	816	1,089	1,429	1,837
Dimensions
“A” Shank Length	in (mm)	24″ (610)	27″ (686)	31″ (787)	36″ (914)	40″ (1,016)	46″ (1,168)	51″ (1,295)	56″ (1,422)
“B” Fluke Length	in (mm)	14″ (356)	16″ (406)	18″ (457)	21″ (533)	24″ (610)	27″ (686)	30″ (762)	33″ (838)
“C” Stock Length	in (mm)	19″ (483)	22″ (559)	25″ (635)	29″ (737)	32″ (813)	37″ (940)	41″ (1,041)	45″ (1,143)
Set up Hardware
Proof Coil Chain	mm	6mm	6mm	8mm	8 or 10	10mm	12mm	12mm	16mm
Nylon Rope **	mm	10	10	12	16	18	22	25	32
Shackle Size	6mm	6mm	6mm	8mm	10mm	12mm	12mm	16mm	16mm
