Description

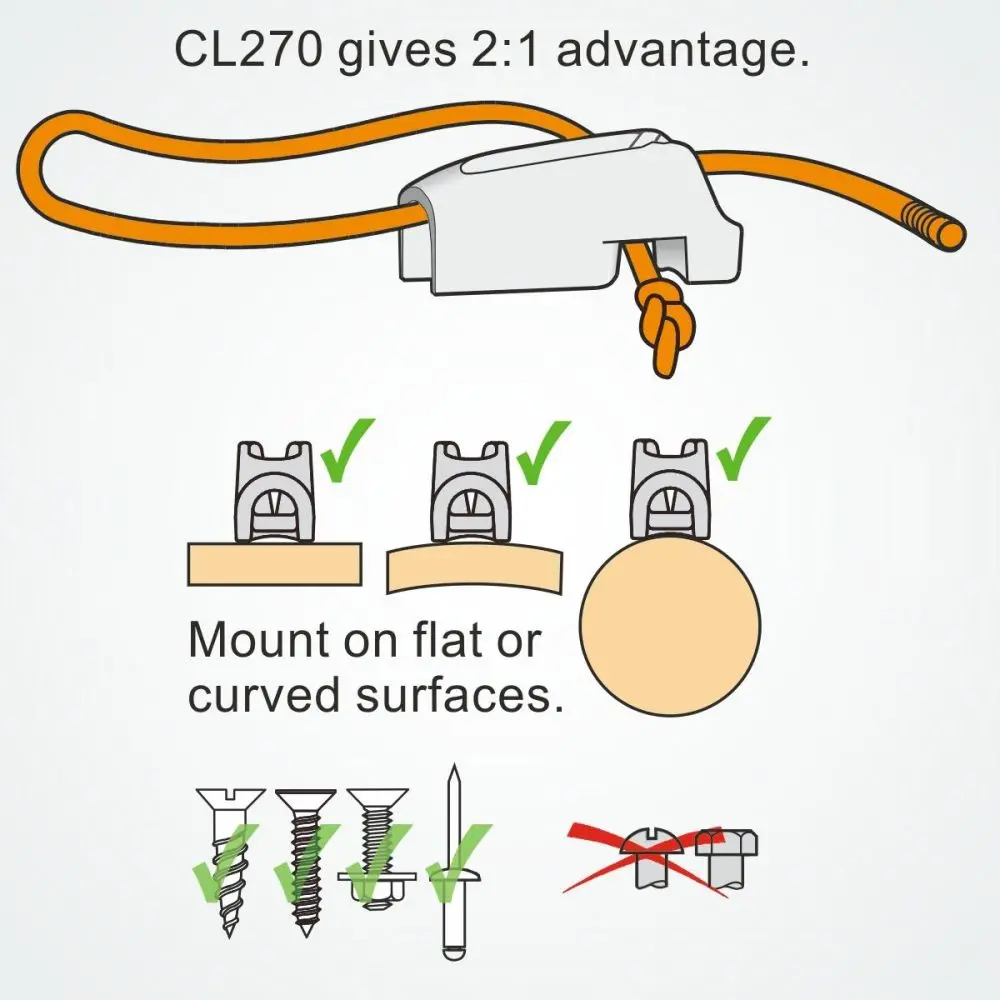

The becket holds the end of the rope under the cleat. No need for an extra fixing when rigging for 2:1 advantage. Small, neat and lightweight. The fairlead guides the rope into the teeth and advanced tooth technology holds all types of small rope. The CL270AN is used on Laser tillers to give a 4:1 advantage without using a pulley block – see photo.
Manufactured from aluminium for a light weight and durable performance the Clamcleat® .
CL270AN has a hard anodised finish to give a hard wearing surface.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
1 – 4mm | 3/64 – 5/32″ |
| Material |  |
Aluminium | Aluminium |
| Hole Centres |  |
24mm | 15/16″ |
| Length |  |
44mm | 1 3/4″ |
| Width |  |
13mm | 1/2″ |
| Height |  |
19mm | 3/4 |
| Bolt Size |  |
M3 | #4-40. 1/8″ |
| Screw Size |  |
3 | No. 4 |
| Weight |  |
14gms | 0.5oz |
