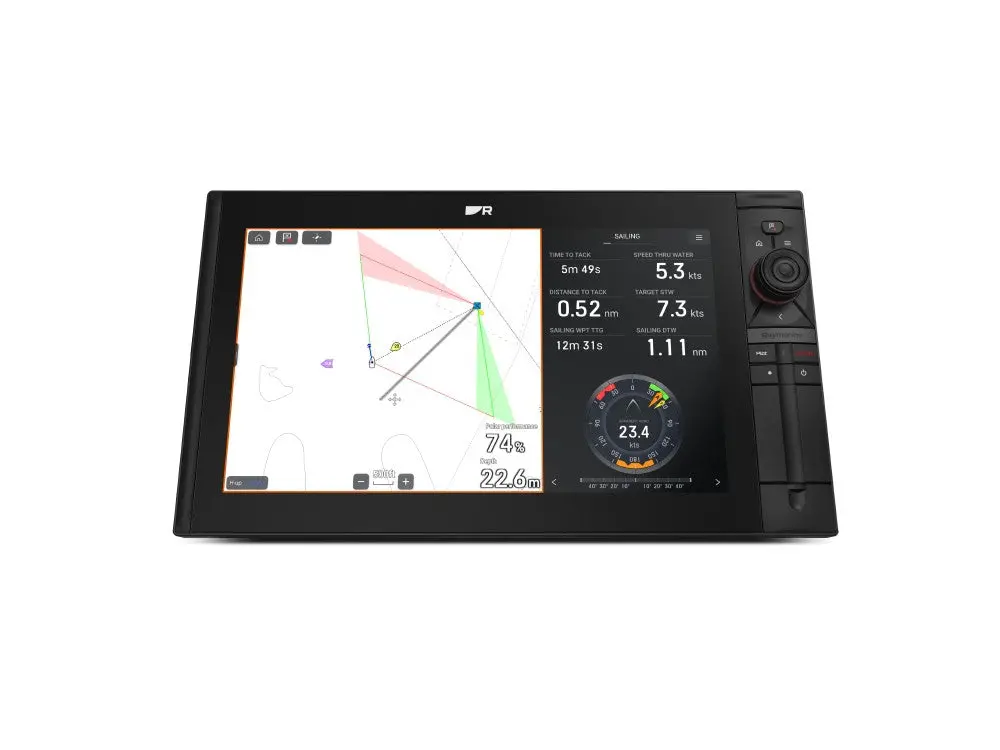

Raymarine Axiom2 Pro RVM
HIGH PERFORMANCE NETWORK CHARTPLOTTERS WITH REALVISION MAX

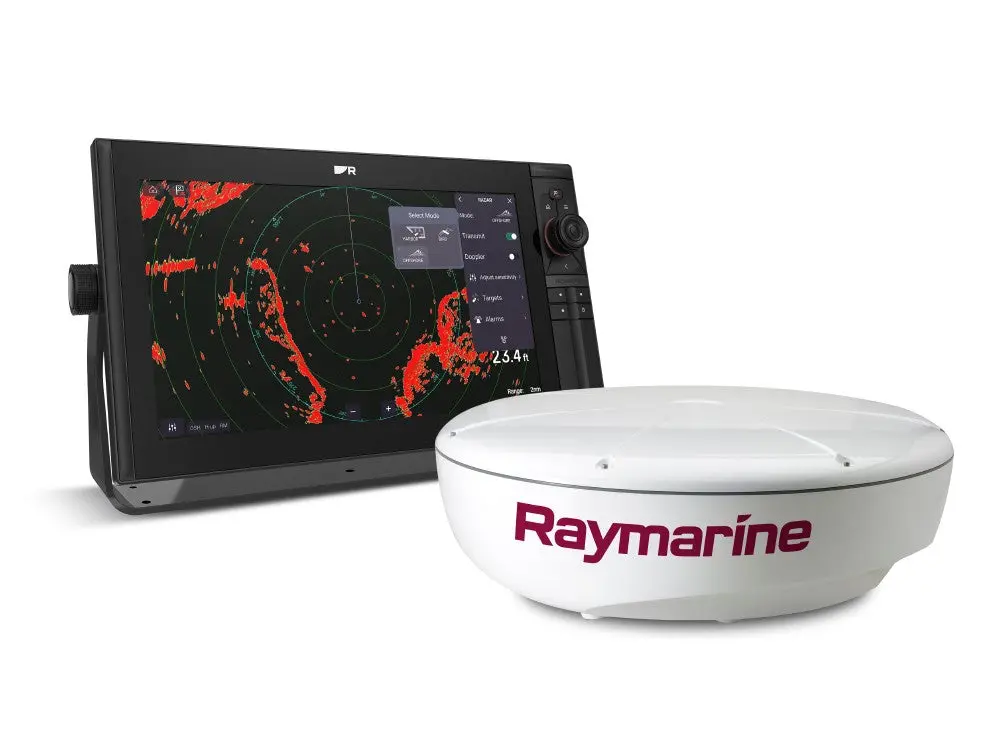

Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system.

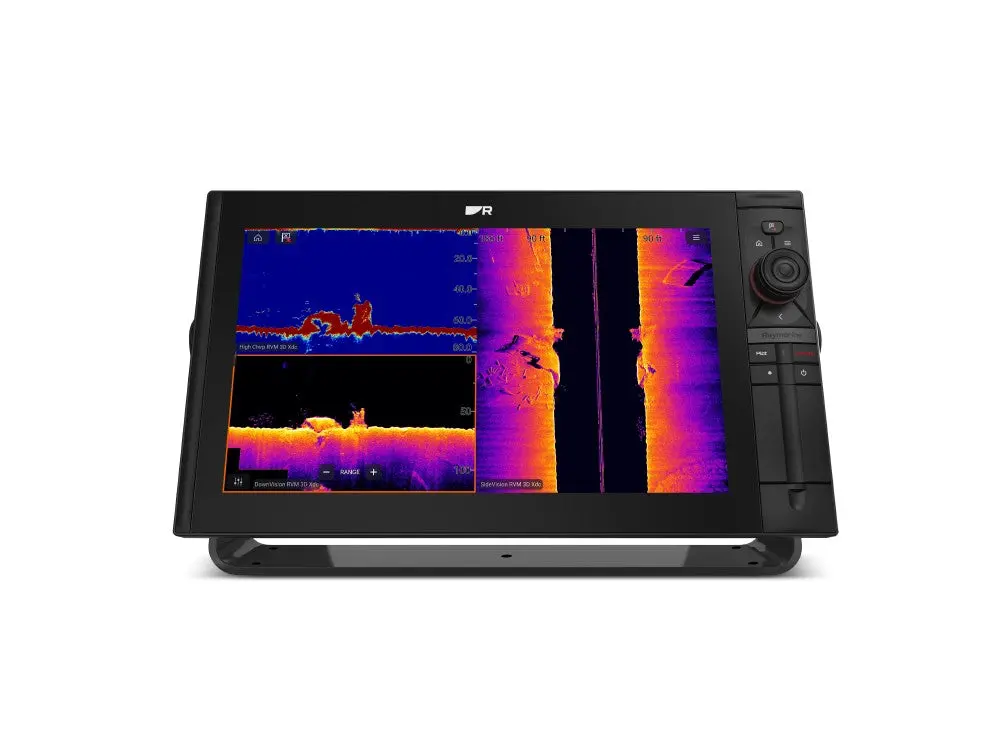

Plan your next trip and get underway confidently with Axiom 2 Pro?s HybridTouch? ? a simple touchscreen and keypad experience. Axiom 2 Pro RVM chartplotters feature built-in wide-spectrum CHIRP with RealVision MAX technology. RealVision MAX ups your fish-finding game with DownVision, Side Vision, and 3D sonar upgraded with increased range, better resolution, and sharper fish targets.
AXIOM 2 PRO KEY FEATURES
- Get underway faster with a fast 6-core processor
- HydroTough? nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch? control plus an interchangeable autopilot keypad or user-programable soft keys
- Find more fish with built-in RealVision MAX CHIRP and dual channel 1kW CHIRP sonar
- Smart backlighting and an ambient light sensor automatically adjusts display brightness for day and evening

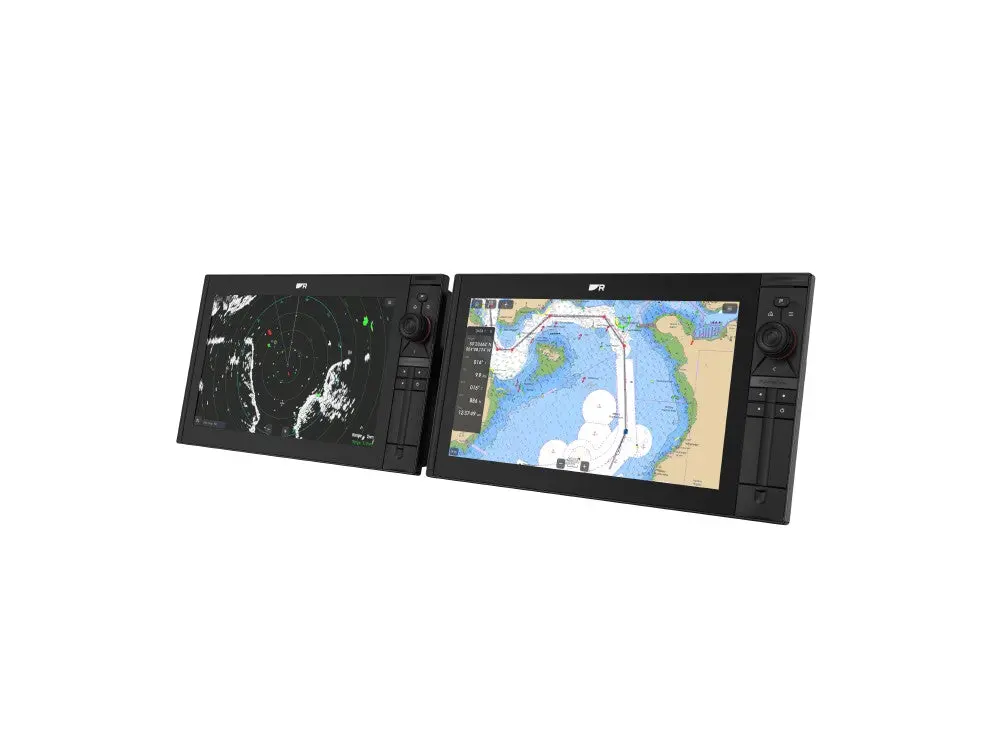

- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro?s HDMI and audio output for remote displays and marine entertainment systems
POWER SPECIFICATION
Power consumption @ 12 V dc
- Axiom 2 Pro 9: 24.96 W
- Axiom 2 Pro 12: 21.12 W
- Axiom 2 Pro 16: 31.44 W
Power consumption @ 24 V dc
- Axiom 2 Pro 9: 25.2 W
- Axiom 2 Pro 12: 22.56 W
- Axiom 2 Pro 16: 31.68 W
Nominal supply voltage
12 V dc / 24 V dc
ENVIRONMENTAL SPECIFICATION
Waterproof rating
IPx6, IPx7
PHYSICAL SPECIFICATION
Size (diagonal)
- Axiom 2 Pro 9: 9.0 in
- Axiom 2 Pro 12: 12.1 in
- Axiom 2 Pro 16: 15.6 in
Dimensions H x W x D (Trunnion mounted)
? Axiom 2 Pro 9: 186.2 mm (7.33 in) x 329.5 mm (12.97 in) x ( 234.9 mm (9.25 in) including cables
? Axiom 2 Pro 12: 246.13 mm (9.69 in) x 388.5 mm (15.3 in) x 233.4 mm (9.18 in) including cables
Dimensions H x W x D (Trunnion mounted)
? Axiom 2 Pro 9: 186.2 mm (7.33 in) x 329.5 mm (12.97 in) x ( 234.9 mm (9.25 in) including cables
? Axiom 2 Pro 12: 246.13 mm (9.69 in) x 388.5 mm (15.3 in) x 233.4 mm (9.18 in) including cables
CONNECTIONS
Digital Video & Audio Out Connection – HDMI Out Micro connector type D?
External GPS Antenna Connection – TNC connector
Accessory connection – USB Micro B (rear ? charging, external storage device or RCR-SD/USB Accessory (A80440)
Ethernet connection – RayNet (10/100/1,000 Mbits/s) x2
External storage – MicroSDXC card slot x2 (front)
NMEA 2000 connection – DeviceNet connector
Analog video connections – BNC Analog video input (on power cable)
Wireless connections – Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Transducer connection – 25 pin RealVision type connector (requires adaptor cable)
Audio connections – Left and Right RCA connectors via Power/Video/Audio cable
GPS
GNSS compatibility – GPS, Galileo, GLONASS, Beidou
SONAR
Channels ?
- 11 pin 1kW connector: 50 kHz Low CHIRP, 200 kHz High CHIRP
- 25 pin RealVision type connector: CHIRP conical sonar, DownVision, SideVision, RealVision 3D
Depth range ?
25 pin RealVision type connector:
- RVM High CHIRP = 365m (1,200ft) ? DownVision = 0.6m (2 ft) to 183m (600 ft)
- SideVision = 0.6m (2 ft) to 91.4 m (300 ft) ? RealVision Max 3D = 0.6m (2 ft) to 91.4m (300 ft) 11 pin 1kW connector:
- 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
LIGHTING
Illumination
- Axiom 2 Pro 9 1300 nits / 1300 cd/m2
- Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2
STORAGE
Internal storage – 64 GB Solid State
