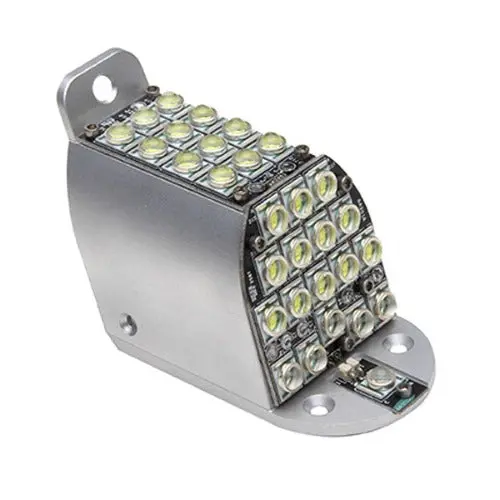

28V LED wingtip light combining anti-collision and forward position illumination in a single compact, aviation-grade unit

Description

71170 series is upgraded! An all LED forward position and anti-collision light assembly includes a red flashing portion to be used as a ground recognition light, red “ground recognition light” cannot be activated simultaneously with white ACL light. This light intended for use as a system with 9048200 and 7123403 Series lightheads and flasher/current sources. Unit complies with TSO-C96a Class II (400 ecp) anti-collision light requirements, and TSO-C30c forward position light requirements. Input connector: MIL D38999 attached to a 24 inch harness attached to the rear of the assembly.
